Processor Slots Types

-

After introducing the Pentium Pro with its integrated L2 cache, Intel discovered that the physical package it chose was very costly to produce. Intel was looking for a way to easily integrate cache and possibly other components into a processor package, and it came up with a cartridge or board design as the best way to do this.

To accept its new cartridges, Intel designed two types of slots that could be used on motherboards. Slot 1 is a 242-pin slot designed to accept Pentium II, Pentium III, and most Celeron processors. Slot 2, on the other hand, is a more sophisticated 330-pin slot designed for the Pentium II Xeon and Pentium III Xeon processors, which are primarily for workstations and servers.

Besides the extra pins, the biggest difference between Slot 1 and Slot 2 is the fact that Slot 2 was designed to host up to four-way or more processing in a single board. Slot 1 allows only single or dual processing functionality. Note that Slot 2 is also called SC330, which stands for slot connector with 330 pins.

Intel later discovered less-expensive ways to integrate L2 cache into the processor core and no longer produces Slot 1 or Slot 2 processors. Both Slot 1 and Slot 2 processors are now obsolete, and many systems using these processors have been retired or upgraded with socket-based motherboards

Slot 1 (SC242)

Slot 1, also called SC242 (slot connector 242 pins), is used by the SEC design that is used with the cartridge-type Pentium II/III and Celeron processors.

Slot 1 connector dimensions and pin layout.

Slot 1 connector dimensions and pin layout

Slot 2 (SC330)

Slot 2, otherwise called SC330 (slot connector 330 pins), is used on high-end motherboards that support the Pentium II and III Xeon processors.

Slot 2 (SC330) connector dimensions and pin layout.

Slot 2 (SC330) connector dimensions and pin layout

The Pentium II Xeon and Pentium III Xeon processors are designed in a cartridge similar to, but larger than, that used for the standard Pentium II/III.

Pentium II/III Xeon cartridge.

Pentium II/III Xeon cartridge

Slot 2 motherboards were used in higher-end systems such as workstations or servers based on the Pentium II Xeon or Pentium III Xeon. These versions of the Xeon differ from the standard Pentium II and slot-based Pentium III mainly by virtue of having full-core speed L2 cache, and in some versions more of it. The additional pins allow for additional signals needed by multiple processors.

Popular posts from this blog

LPX Motherboard

-
The LPX and mini-LPX form factor boards were a semiproprietary design that Western Digital originally developed in 1987 for some of its motherboards. The LP in LPX stands for Low Profile, which is so named because these boards incorporate slots that are parallel to the main board, enabling the expansion cards to install sideways. This allows for a slim or low-profile case design and overall a smaller system than the Baby-AT. Although Western Digital no longer produces PC motherboards, the form factor lives on, and many other motherboard manufacturers have duplicated the design. Unfortunately, because the specifications were never laid out in exact detail—especially with regard to the bus riser card portion of the design—these boards are termed semiproprietary and are not interchangeable between manufacturers. Some vendors, such as IBM and HP, for example, have built LPX systems that use a T-shaped riser card that allows expansion cards to be mounted at the normal 90° a...
Read more

ISA Bus

-
Industry Standard Architecture (ISA) is the bus architecture that was introduced as an 8-bit bus with the original IBM PC in 1981; it was later expanded to 16 bits with the IBM PC/AT in 1984. ISA is the basis of the modern personal computer and the primary architecture used in the vast majority of PC systems on the market today. It might seem amazing that such a presumably antiquated architecture is used in today's high-performance systems, but this is true for reasons of reliability, affordability, and compatibility, plus this old bus is still faster than many of the peripherals we connect to it! Two versions of the ISA bus exist, based on the number of data bits that can be transferred on the bus at a time. The older version is an 8-bit bus; the newer version is a 16-bit bus. The original 8-bit version ran at 4.77MHz in the PC and XT, and the 16-bit version used in the AT ran at 6MHz and then 8MHz. Later, the industry as a whole agreed on an 8.33MHz maximum standar...
Read more

Flex-ATX

-

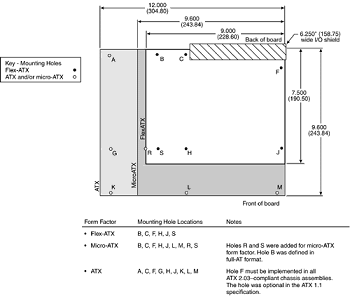

In March 1999, Intel released the flex-ATX addendum to the micro-ATX specification. This added a new and even smaller variation of the ATX form factor to the motherboard scene. Flex-ATX's smaller design is intended to allow a variety of new PC designs, especially extremely inexpensive, smaller, consumer-oriented, appliance-type systems. Some of these designs might not even have expansion slots, allowing expansion only through USB or IEEE-1394/FireWire ports. Flex-ATX defines a board that is up to 9''x7.5'' (229mmx191mm) in size, which is the smallest of the ATX family boards. In all other ways, flex-ATX is the same as ATX and micro-ATX, making flex-ATX fully backward compatible with ATX or micro-ATX by using a subset of the mounting holes and the same I/O and power supply connector specifications (see Figure below). Most flex-ATX systems likely use SFX/TFX (small or thin form factor) type power supplies (introduced in the micro-ATX specification), a...
